Contour Lines Generator

This is something I had wanted to make for a long time. There is a particular kind of beauty in seeing art come out of mathematics: a few numbers, an interpolation rule, and suddenly the screen shows something that looks like a coastline or a mountain ridge. I started sketching this years ago and never finished it, but agentic coding finally let me close the gap between the idea and a working tool, and the results are honestly brilliant. It is pure JavaScript, no framework and no build step, entirely open source, and you can try it in the browser.

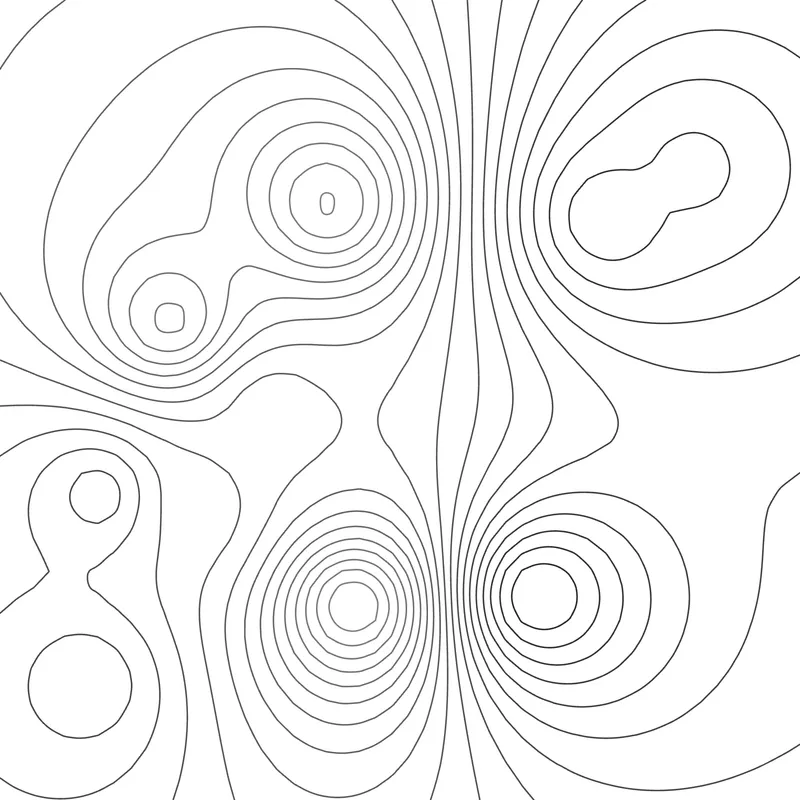

The purpose of this project is to generate parametric contour lines and export them as beautiful images.

How it works

Contour lines are level sets of a continuous height function h(x, y). The user only supplies a handful of scattered samples of that surface, so the pipeline reconstructs it first and slices it second:

1. Control points (x, y, z): the scattered data, placed and dragged on the canvas, in normalised [0,1]² coordinates. Everything downstream is derived from them, so the whole image is one small parameter set, and it fits in a URL.
2. Scalar field: h is evaluated on a regular grid of resolution² samples by scattered-data interpolation: either inverse distance weighting or gaussian radial basis functions.
   • Additive bumps sums the gaussians, so overlapping points build ridges. It’s the most terrain-like of the three;

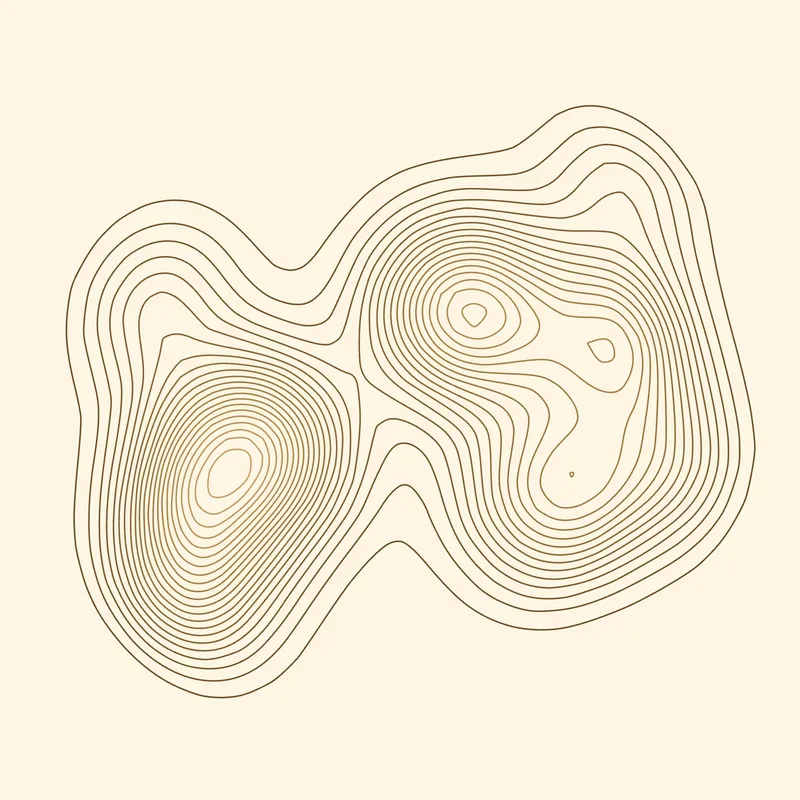

   • inverse distance and gaussian blend average instead, so the field never exceeds the highest control point. Optional fBm noise roughens the surface, and a smoothstep border mask fades it to zero near the frame so contours close into islands instead of being clipped: radial gives an oval landmass, frame gives rings parallel to the border, none lets lines run off the edge. The result is rescaled to [0,1].
3. Marching squares: the algorithm classifies each cell’s four corners as above or below the level; the 16 possible configurations say which cell edges the contour crosses, and linear interpolation between corner values places the crossing along the edge. Two configurations are ambiguous saddles, the cell-centre average picks a branch.
4. Stitching: the loose segments are joined into continuous polylines. Crossings are keyed by the grid edge they lie on rather than by coordinates, so adjacent cells agree exactly and no floating-point tolerance is involved. Chains with a free end run off the frame; the rest close into loops around peaks and basins.
5. Simplify & smooth: Ramer–Douglas–Peucker drops vertices that stay within a tolerance of the line they sit on, then Chaikin’s corner cutting rounds the grid-faceted polyline into a curve (it converges to a quadratic B-spline). Simplifying first means smoothing has fewer, longer edges to work with, and the exported file stays small.

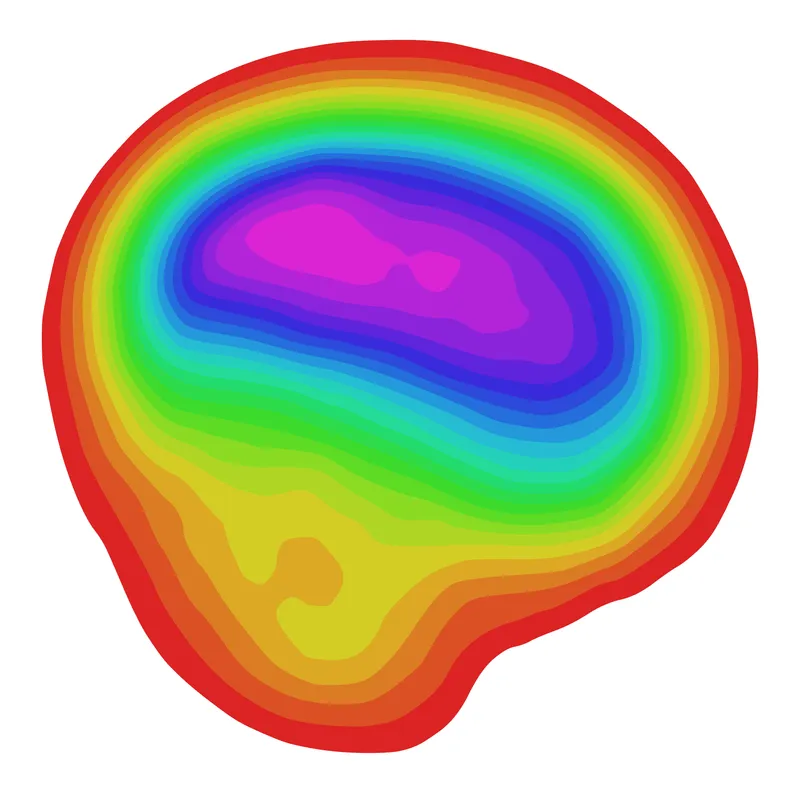

6. SVG paths: the polylines are mapped to pixels and written as SVG M/L path data, then coloured from the palette. Topographic and Paper white are fixed lists; Rainbow and Single colour are generated (a hue wheel, and lightness steps of a picked colour), since a palette supplies either colors or a build(style) function. By default colour is a continuous ramp across the palette, so it encodes elevation; cycle repeats the palette per line and single uses one colour throughout.
